Introduction to Data Modeling
|
|

Introduction

Data Modeling
  Overview
  E-R Model
  Database Design
  Data Objects
  Basic Schema
  Refining the E-R
  Primary Keys
  Attributes
  Hierarchies
  Integrity Rules
  Bibliography

Relational Model
  Overview
  Data Structure
  Notation
  Relational Table
  Relationships
  Data Integrity
  Relational Data
  Normalization
  Advanced



|

Normalization

Normalization is a design technique that is widely used as a guide in designing relational databases. Normalization is essentially a two step process that puts data into tabular form by removing repeating groups and then removes duplicated data from the relational tables.

Normalization theory is based on the concepts of normal forms. A relational table is said to be a particular normal form if it satisfied a certain set of constraints. There are currently five normal forms that have been defined. In this section, we will cover the first three normal forms that were defined by E. F. Codd.

Basic Concepts

The goal of normalization is to create a set of relational tables that are free of redundant data and that can be consistently and correctly modified. This means that all tables in a relational database should be in the third normal form (3NF). A relational table is in 3NF if and only if all non-key columns are (a) mutually independent and (b) fully dependent upon the primary key. Mutual independence means that no non-key column is dependent upon any combination of the other columns. The first two normal forms are intermediate steps to achieve the goal of having all tables in 3NF. In order to better understand the 2NF and higher forms, it is necessary to understand the concepts of functional dependencies and lossless decomposition.

Functional Dependencies

The concept of functional dependencies is the basis for the first three normal forms. A column, Y, of the relational table R is said to be functionally dependent upon column X of R if and only if each value of X in R is associated with precisely one value of Y at any given time. X and Y may be composite. Saying that column Y is functionally dependent upon X is the same as saying the values of column X identify the values of column Y. If column X is a primary key, then all columns in the relational table R must be functionally dependent upon X.

A short-hand notation for describing a functional dependency is:

R.x —>; R.y

which can be read as in the relational table named R, column x functionally determines (identifies) column y.

Full functional dependence applies to tables with composite keys. Column Y in relational table R is fully functional on X of R if it is functionally dependent on X and not functionally dependent upon any subset of X. Full functional dependence means that when a primary key is composite, made of two or more columns, then the other columns must be identified by the entire key and not just some of the columns that make up the key.

Overview

Simply stated, normalization is the process of removing redundant data from relational tables by decomposing (splitting) a relational table into smaller tables by projection. The goal is to have only primary keys on the left hand side of a functional dependency. In order to be correct, decomposition must be lossless. That is, the new tables can be recombined by a natural join to recreate the original table without creating any spurious or redundant data.

Sample Data

Data taken from Date [Date90] is used to illustrate the process of normalization. A company obtains parts from a number of suppliers. Each supplier is located in one city. A city can have more than one supplier located there and each city has a status code associated with it. Each supplier may provide many parts. The company creates a simple relational table to store this information that can be expressed in relational notation as:

FIRST (s#, status, city, p#, qty)

where

s# supplier identifcation number (this is the primary key)
status status code assigned to city
city name of city where supplier is located
p# part number of part supplied
qty> quantity of parts supplied to date

In order to uniquely associate quantity supplied (qty) with part (p#) and supplier (s#), a composite primary key composed of s# and p# is used.

First Normal Form

A relational table, by definition, is in first normal form. All values of the columns are atomic. That is, they contain no repeating values. Figure1 shows the table FIRST in 1NF.

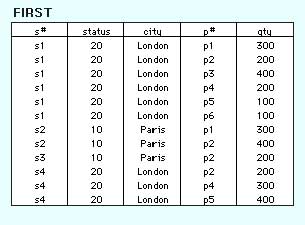

Figure 1: Table in 1NF

Although the table FIRST is in 1NF it contains redundant data. For example, information about the supplier's location and the location's status have to be repeated for every part supplied. Redundancy causes what are called update anomalies. Update anomalies are problems that arise when information is inserted, deleted, or updated. For example, the following anomalies could occur in FIRST:

  • INSERT. The fact that a certain supplier (s5) is located in a particular city (Athens) cannot be added until they supplied a part.
  • DELETE. If a row is deleted, then not only is the information about quantity and part lost but also information about the supplier.
  • UPDATE. If supplier s1 moved from London to New York, then six rows would have to be updated with this new information.

Second Normal Form

The definition of second normal form states that only tables with composite primary keys can be in 1NF but not in 2NF.

A relational table is in second normal form 2NF if it is in 1NF and every non-key column is fully dependent upon the primary key.

That is, every non-key column must be dependent upon the entire primary key. FIRST is in 1NF but not in 2NF because status and city are functionally dependent upon only on the column s# of the composite key (s#, p#). This can be illustrated by listing the functional dependencies in the table:

s#
—> city, status
city
—> status
(s#,p#)
—>qty

The process for transforming a 1NF table to 2NF is:

  1. Identify any determinants other than the composite key, and the columns they determine.
  2. Create and name a new table for each determinant and the unique columns it determines.
  3. Move the determined columns from the original table to the new table. The determinate becomes the primary key of the new table.
  4. Delete the columns you just moved from the original table except for the determinate which will serve as a foreign key.
  5. The original table may be renamed to maintain semantic meaning.

To transform FIRST into 2NF we move the columns s#, status, and city to a new table called SECOND. The column s# becomes the primary key of this new table. The results are shown below in Figure 2.

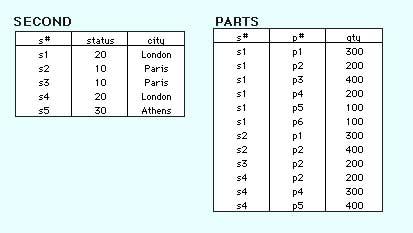

Figure 2: Tables in 2NF

Tables in 2NF but not in 3NF still contain modification anomalies. In the example of SECOND, they are:

INSERT. The fact that a particular city has a certain status (Rome has a status of 50) cannot be inserted until there is a supplier in the city.

DELETE. Deleting any row in SUPPLIER destroys the status information about the city as well as the association between supplier and city.

Third Normal Form

The third normal form requires that all columns in a relational table are dependent only upon the primary key. A more formal definition is:

A relational table is in third normal form (3NF) if it is already in 2NF and every non-key column is non transitively dependent upon its primary key. In other words, all nonkey attributes are functionally dependent only upon the primary key.

Table PARTS is already in 3NF. The non-key column, qty, is fully dependent upon the primary key (s#, p#). SUPPLIER is in 2NF but not in 3NF because it contains a transitive dependency. A transitive dependency is occurs when a non-key column that is a determinant of the primary key is the determinate of other columns. The concept of a transitive dependency can be illustrated by showing the functional dependencies in SUPPLIER:

SUPPLIER.s#
—> SUPPLIER.status
SUPPLIER.s#
—> SUPPLIER.city
SUPPLIER.city
—> SUPPLIER.status

Note that SUPPLIER.status is determined both by the primary key s# and the non-key column city. The process of transforming a table into 3NF is:

  1. Identify any determinants, other the primary key, and the columns they determine.
  2. Create and name a new table for each determinant and the unique columns it determines.
  3. Move the determined columns from the original table to the new table. The determinate becomes the primary key of the new table.
  4. Delete the columns you just moved from the original table except for the determinate which will serve as a foreign key.
  5. The original table may be renamed to maintain semantic meaning.

To transform SUPPLIER into 3NF, we create a new table called CITY_STATUS and move the columns city and status into it. Status is deleted from the original table, city is left behind to serve as a foreign key to CITY_STATUS, and the original table is renamed to SUPPLIER_CITY to reflect its semantic meaning. The results are shown in Figure 3 below.

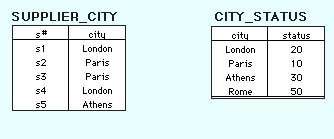

Figure 3: Tables in 3NF

The results of putting the original table into 3NF has created three tables. These can be represented in "psuedo-SQL" as:

PARTS (#s, p#, qty)
Primary Key (s#,#p)
Foreign Key (s#) references SUPPLIER_CITY.s#

SUPPLIER_CITY(s#, city)
Primary Key (s#)
Foreign Key (city) references CITY_STATUS.city

CITY_STATUS (city, status)
Primary Key (city)

Advantages of Third Normal Form

The advantage of having relational tables in 3NF is that it eliminates redundant data which in turn saves space and reduces manipulation anomalies. For example, the improvements to our sample database are:

INSERT. Facts about the status of a city, Rome has a status of 50, can be added even though there is not supplier in that city. Likewise, facts about new suppliers can be added even though they have not yet supplied parts.

DELETE. Information about parts supplied can be deleted without destroying information about a supplier or a city. UPDATE. Changing the location of a supplier or the status of a city requires modifying only one row.

|
